CRG JAPAN

Technical Specifications

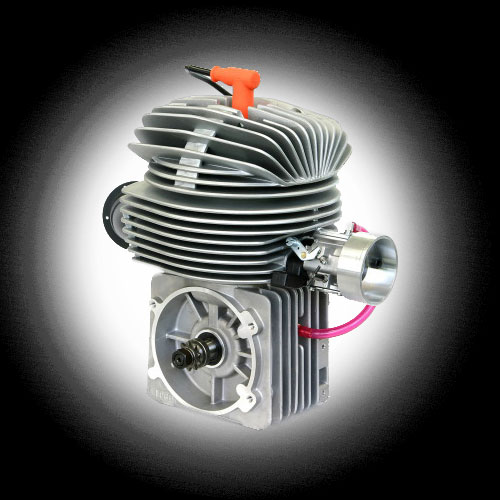

Model:	RK100 Piston Port.
Capacity:	98cc (nominal)
Bore×Stroke:	49.92×50.00mm
Carburettor:	Walbro WB-3A
Ignition:	CDI with Internal rotor
Cylinder:	Aluminum cast-Radial Fins with anti-vibration
Cylinder Head:	9-11cc
Crankshaft:	2 piece forged-induction hardened-fully machined
Conrod:	100mm steel forged & machined-needle rollers top and bottom
Crankpin:	18mm diameter×45mm
Pistonpin:	14mm diameter×39mm
Piston:	uncoated with single dykes Ring (14sizes)
Main Bearings:	6205-C4
Cylinder Assembly:	Aluminum cast with integral iron liner

RK-100 　ダイレクトエンジン

サイレンサーレスキット
￥75,600 (72,000)

サイレンサー付キット（φ100ストレート）
￥80,850 (77,000)

RK-100
