Technical Specifications |
| Model: |

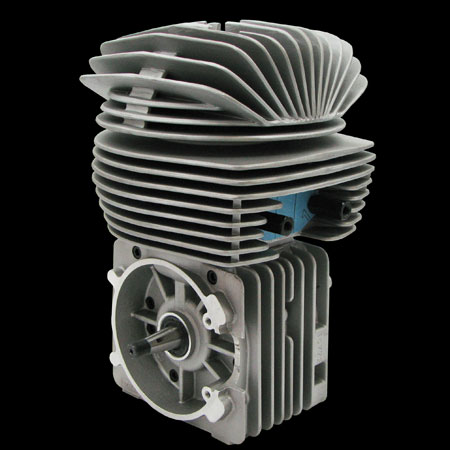

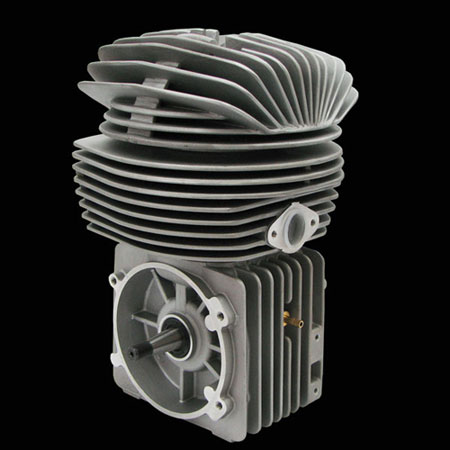

RK100 Piston Port. |
| Capacity: |
98cc (nominal) |
| Bore×Stroke: |
49.92×50.00mm |
| Cylinder: |
Aluminum cast-Radial Fins with anti-vibration |
| Cylinder Head: |
9-11cc |
| Crankshaft: |
2 piece forged-induction hardened-fully machined |
| Conrod: |
100mm steel forged & machined-needle rollers top and bottom |
| Crankpin: |
18mm diameter×45mm |
| Pistonpin: |
14mm diameter×39mm |
| Piston: |
uncoated with single dykes Ring (14sizes) |
| Main Bearings: |
6205-C4 |
| Cylinder Assembly: |
Aluminum cast with integral iron liner |
