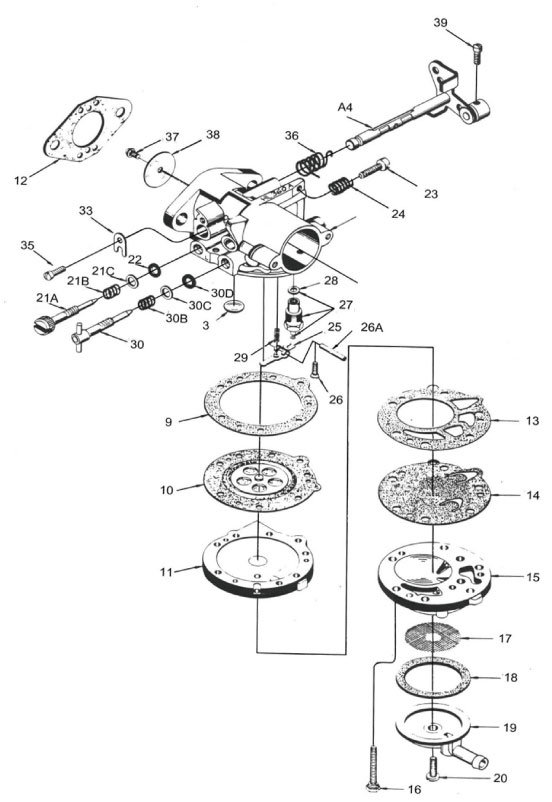

Illustration of basic parts
standard throughout Karting series carburettor. For individual model listing see following pages. |
 |
|
Parts
illustrated are typical in appearance and may not look exactly like the part required |
|
| 税込 | 税込 | |||||
| TILLOTSON ｷｬﾌﾞﾚﾀｰ HL360A | 24,570 | 22 | ｱｲﾄﾞﾙｽｸﾘｭｰﾊﾟｯｷﾝ | 189 | ||
| 3 | ﾎﾞﾃﾞｨｰﾁｬﾝﾈﾙｳｴﾙﾁﾌﾟﾗｸﾞ | 147 | 25 | ｲﾝﾚｯﾄﾚﾊﾞｰ | 315 | |
| 9 | ﾀﾞｲﾔﾌﾗﾑｶﾞｽｹｯﾄ / 0.5mm HL360 | 210 | 26 | ｲﾝﾚｯﾄｽｸﾘｭｰ | 147 | |
| 10 | ﾀﾞｲﾔﾌﾗﾑﾒﾀﾙ | 1,155 | 26A | ｲﾝﾚｯﾄﾋﾟﾝ | 126 | |
| 12 | ﾌﾗﾝｼﾞｶﾞｽｹｯﾄ φ26 | 126 | 27 | ｲﾝﾚｯﾄﾆｰﾄﾞﾙ&ｶﾞｽｹｯﾄ / HL360 | 1,890 | |
| 13 | ﾌｭｰｴﾙﾎﾟﾝﾌﾟｶﾞｽｹｯﾄ / 0.5mm HL360 | 210 | ｲﾝﾚｯﾄﾆｰﾄﾞﾙ ONLY / HL360 | 630 | ||
| ﾌｭｰｴﾙﾎﾟﾝﾌﾟｶﾞｽｹｯﾄ / 1.0mm | 210 | ｲﾝﾚｯﾄﾆｰﾄﾞﾙ&ｶﾞｽｹｯﾄ | 1,890 | |||
| 14 | ﾌｭｰｴﾙﾎﾟﾝﾌﾟﾀﾞｲﾔﾌﾗﾑ / 0.12mm HL360 | 504 | 29 | ｲﾝﾚｯﾄﾃﾝｼｮﾝｽﾌﾟﾘﾝｸ ﾞ/ HL360 | 158 | |
| ﾌｭｰｴﾙﾎﾟﾝﾌﾟﾀﾞｲﾔﾌﾗﾑ / 0.07mm | 525 | 30 | ﾊｲｽﾋﾟｰﾄﾞｽｸﾘｭｰ | 1,680 | ||
| ﾌｭｰｴﾙﾎﾟﾝﾌﾟﾀﾞｲﾔﾌﾗﾑ / 0.15mm | 504 | 33 | ｽﾛｯﾄﾙｼｬﾌﾄｸﾘｯﾌﾟ | 168 | ||
| 16 | ﾌｭｰｴﾙﾎﾟﾝﾌﾟﾎﾞﾃﾞｨｰｽｸﾘｭｰ | 189 | 36 | ｽﾛｯﾄﾙﾘﾀｰﾝｽﾌﾟﾘﾝｸﾞ | 210 | |
| 17 | ﾌｭｰｴﾙｽﾄﾚｰﾅｰｽｸﾘｰﾝ | 168 | 37 | ｽﾛｯﾄﾙｼｬｯﾀｰｽｸﾘｭｰ | 147 | |
| 18 | ﾌｭｰｴﾙｽﾄﾚｰﾅｰｶﾊﾞｰｶﾞｽｹｯﾄ | 126 | 38 | ｽﾛｯﾄﾙｼｬｯﾀｰ | 263 | |
| 19 | ﾌｭｰｴﾙｽﾄﾚｰﾅｰｶﾊﾞｰ | 525 | A4
|
ｽﾛｯﾄﾙｼｬﾌﾄﾚﾊﾞｰ / HL360 | 3,360 | |
| 20 | ﾌｭｰｴﾙｽﾄﾚｰﾅｰｶﾊﾞｰｽｸﾘｭｰ | 147 | ﾀﾞｲﾔﾌﾗﾑ&ｶﾞｽｹｯﾄKit (0.12) HL360 | 1,890 | ||
| 21A | ｱｲﾄﾞﾙｽｸﾘｭｰ | 735 | ﾀﾞｲﾔﾌﾗﾑ&ｶﾞｽｹｯﾄKit （0.07) | 1,890 | ||
| 21B | ｱｲﾄﾞﾙｽｸﾘｭｰｽﾌﾟﾘﾝｸﾞ | 126 | ｽﾛｯﾄﾙﾘﾝｹｰｼﾞ / HL360 | 1,050 | ||
| 21C | ｱｲﾄﾞﾙｽｸﾘｭｰﾜｯｼｬｰ | 168 | ｽﾛｯﾄﾙｽﾄｯﾊﾟｰ / HL360 | 735 | ||
